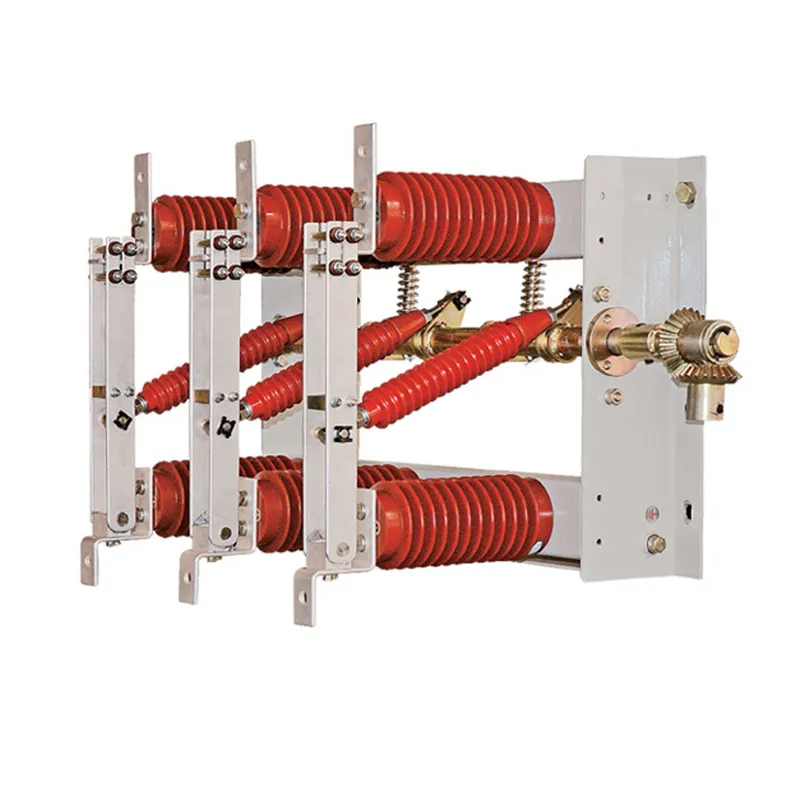

FGN-24/630 Indoor AC high-voltage isolating switch is suitable for places with rated voltage of 24kV and rated frequency of 50Hz. It is a switch with obvious A-Q isolation fracture designed and developed by our company according to GB1985 standard. This type of disconnector has the characteristics of small volume, simple and reasonable structure, small operating force, reliable performance and convenient maintenance. It is used in the cabinet together with 24kV high-voltage circuit breaker, which is a high-voltage isolating switch with advantages in cost performance.

Operational environment

1.The altitude is ≤1000m;

2.The ambient temperature is -25℃~+40℃;

3.The daily average relative humidity is not more than 95%, and the monthly average relative humidity is not more than 90%;

4.The surrounding air is not obviously polluted by dust, smoke, corrosive and/or combustible gas, steam or salt spray;

5.Places without fire and explosion hazards;

6.The earthquake intensity does not exceed 8 degrees; Places with an inclination not exceeding 5.

Note: The above are the general use conditions of GB/T11022. If the special use environment conditions are high altitude, thick salt fog and extremely cold and hot environment, the technical design can be changed and customized according to the above requirements.

Design feature

The various installation methods of the high-voltage disconnector meet the various use requirements of customers.

A:Installation mode-front-mounted switch, upside-down switch and wall-mounted switch.

B:Operation mode-switch side operation and switch front operation.
