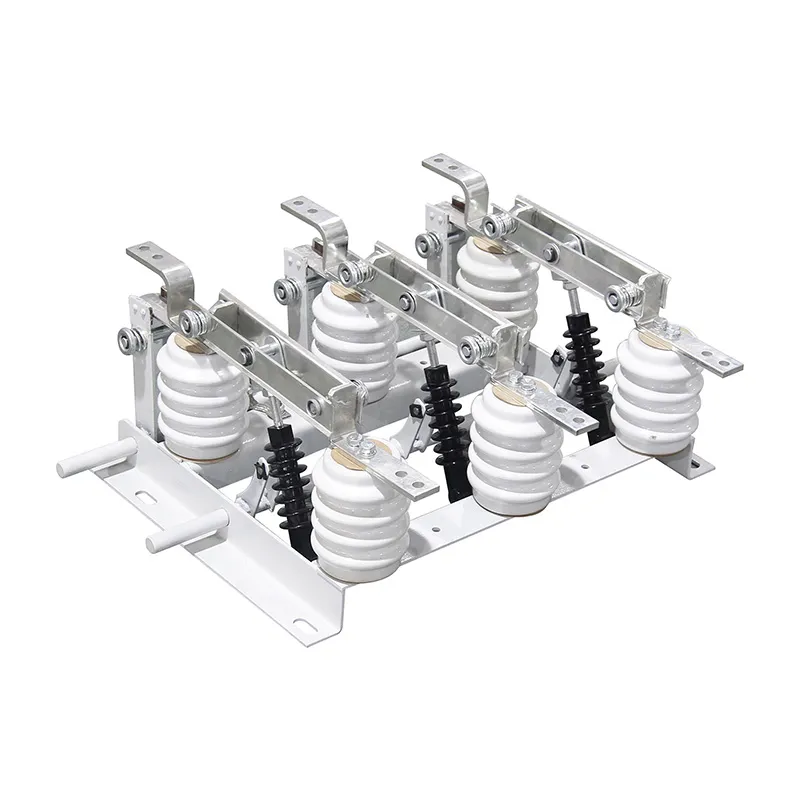

RVZ-10/630 Three-phase isolating switch

شرح:

• Classification Series ：High Voltage Isolating Switch • Product Name ：RVZ-10/630 Three-phase isolating switch • Product Overview： Three-Phase Disconnect Switch RVZ-10/630 II UHL2 Internal Mounting with One Grounding Blade for Use in AC Power Networks with 50-60 Hz Frequency, Rated Voltage 10kV...

درخواست نقل قول

بارگیری کردن

معرفی دقیق

Three-Phase Disconnect Switch RVZ-10/630 II UHL2 Internal Mounting with One Grounding Blade for Use in AC Power Networks with 50-60 Hz Frequency, Rated Voltage 10kV

This switch performs the following functions

Closing/opening electrical circuits in the absence of load current or for transforming circuit connection schemes;

Creating a visible circuit break for safe operation on an isolated section;

Connecting and disconnecting charging currents of air and cable lines, no-load currents of transformers, and weak load currents.

Specification

Parameter Name	Value
Model (Series)	RVZ
Nominal Voltage, kV	10
Number of Poles	3
Nominal Current In, A	630
Protection Degree	IP00
Maximum Operating Voltage, kV	12
Rated Thermal Stability Current, kA	20
Nominal Frequency, Hz	50/60
Disconnector Weight	26 kg

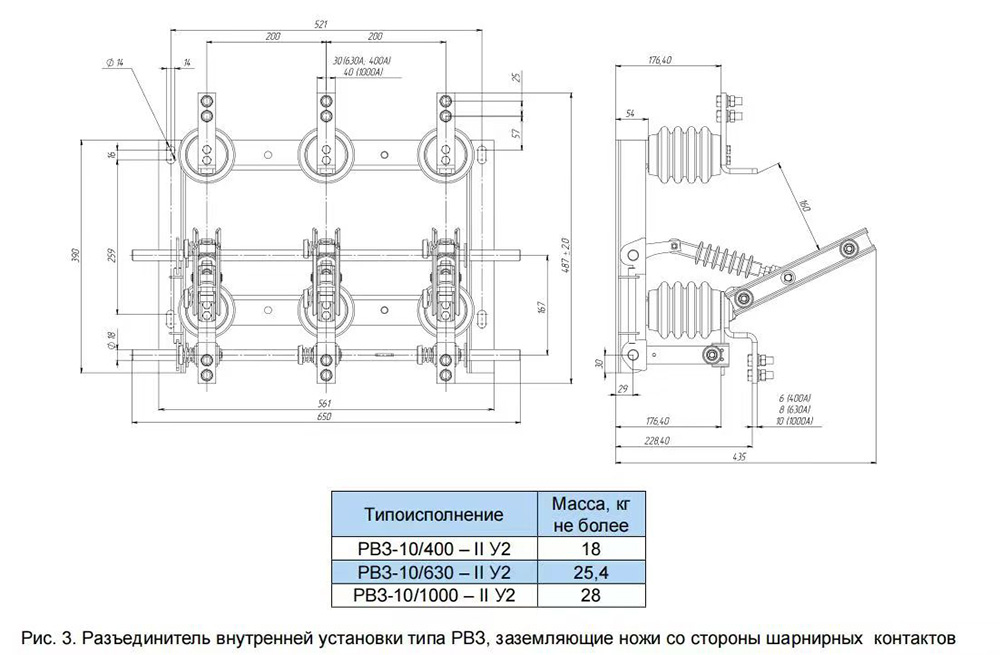

External Dimension (mm)
